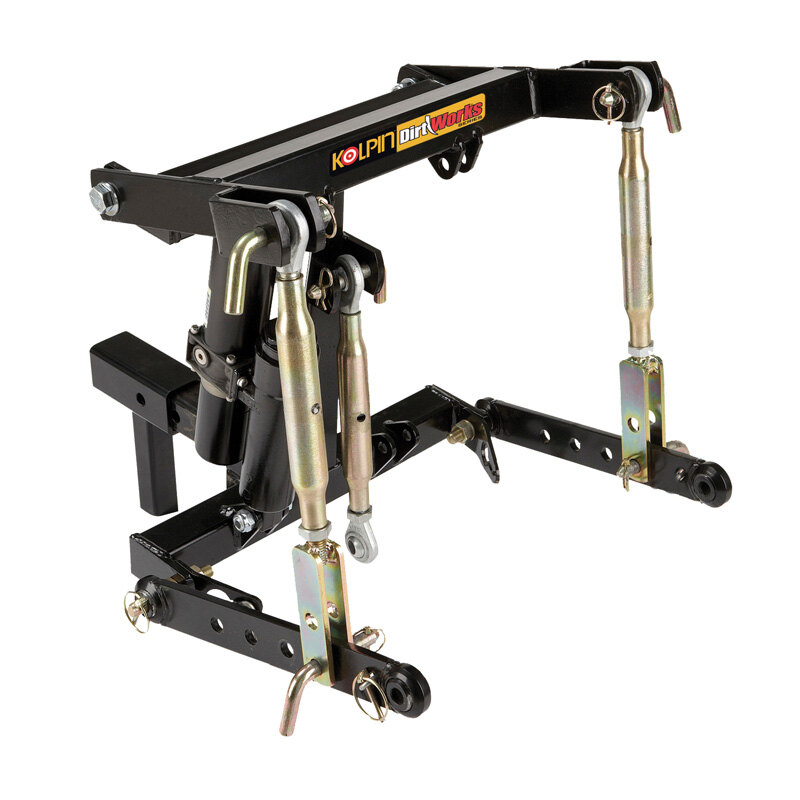

ATVUTV 3-POINT HD HITCH SYSTEM

Our heavy-duty mainframe for use on side x side vehicles (UTV’s) is a category “O” 3-point hitch with a 20” drawbar width and 5/8” diameter pins. We added a heavy-duty, 12v electric actuator that does the heavy lifting work for you while also providing an incredible 300 lb of downforce - that’s about equal to 10 of those cumbersome cinder blocks! Unlike tow-behind implements, this available downforce provides deeper plowing for better land cultivation and improved agricultural success.

The innovative features incorporated into the DirtWorks 3-Point Hitch System provide easy change over from work to play in just minutes with quick, easy installation and adjustments without the need for tools. The convenient rocker switch can be mounted to your handle bars so adjustments for soil depth and lifting for transport is done without ever having to get off your machine.

With the wide range of implements available for this system, you truly are tricking your UTV into thinking it’s a tractor!

• 12v electric actuator lift system with 20 amp maximum current draw.
• 250 lb lift capacity at the tool bar with 300 lb down pressure capacity.
• 15” vertical lift at the drawbar.
• Fully adjustable lift arms and top link provide maximum customization for any task.
• Fits any 2” automotive style receiver hitch or if you don’t have one, check out our complete line of heavy-duty hitches (UTV hitch fit list).
• Additional frame support kit may be required, please check our UTV fit list.
• Requires 60” Tool Bar (sold separately).
