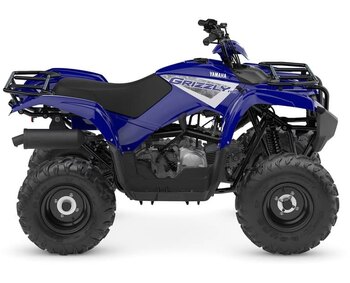

2025 Yamaha Grizzly EPS

Name: 2025 Yamaha Grizzly EPS
Brand: Yamaha
Availability: InStock

In Stock

Call for Price

Get a Quote Get Financed Value a Trade Contact Us Book a Demo Get Directions Get Directions Print

Overview

TRAIL TESTED, RIDER APPROVED. With superior capability, all‑day comfort and legendary durability, the Grizzly is the best-performing ATV in its class.

Specifications

Model

GRIZZLY

Category Name

ATVs

Year

2025

Sale Type

New

Manufacturer

Yamaha

Color

gris métallique/rouge

engine

ENGINE

Liquid-cooled, SOHC 4-stroke

Ignition

TCI

Starting

Electric

FINAL DRIVE

On-Command 3-way locking differential; 2WD, 4WD, locked 4WD; shaft

LUBRICATION

Wet sump

DISPLACEMENT

686cc

TRANSMISSION

Ultramatic V-belt with all-wheel engine braking; H, L, N, R, P

FUEL DELIVERY

Yamaha Fuel Injection (YFI), 44 mm

BORE AND STROKE

102 mm x 84 mm

COMPRESSION RATIO

10 : 1

chassis

TIRES (REAR)

AT26 x 10-12 Maxxis® MU06Y

BRAKES (REAR)

Dual hydraulic disc

TIRES (FRONT)

AT26 x 8-12 Maxxis® MU05Y

BRAKES (FRONT)

Dual hydraulic disc

SUSPENSION (REAR)

Independent double wishbone with anti-sway bar; 5-way preload adjustment / 232 mm (9.1") of wheel travel

SUSPENSION (FRONT)

Independent double wishbone; 5-way preload adjustment / 193 mm (7.6") of wheel travel

highlights

CAPABILITY

The Grizzly EPS transmission uses its own cooling intake to maintain proper temperatures, an oversized belt to handle the torque of the large motor and Yamaha’s unique sprag clutch to maintain constant belt tension. The end result is a drivetrain built for years of trouble-free service that leaves the competition in the dust, and is backed by the industry's only 10-Year V-Belt Limited Warranty.

COMFORT

An independent double wishbone suspension with 7.6 inches of front wheel travel and 9.1 inches at the rear, along with nitrogen-charged shocks offering 5-way adjustable preload, combine to provide excellent rider comfort on even the most challenging trails.

CONFIDENCE

Grizzly EPS' Ultramatic® transmission features a gated shifter, dual-range (Hi/Lo) drive plus reverse gear, and the industry's most advanced—and durable—CVT drive system. An automatic centrifugal clutch maintains constant belt tension for reduced wear, and a sprag clutch delivers natural all-wheel engine braking.

key features

Electric starting
Big Bore Engine Designed for Aggressive Trail Riding
High-Performance Ultramatic® Transmission
Exclusive On-Command® 4WD
Class-leading Electric Power Steering
High-Mounted Air Intake

critical data

WIDTH

1230 mm (48.4")

HEIGHT

1253 mm (49.3")

LENGTH

2070 mm (81.5")

Warranty

One year (unlimited mileage) / 10 Year Belt Warranty

WHEELBASE

1250 mm (49.2")

WET WEIGHT

318 kg (701 lb)

SEAT HEIGHT

918 mm (36.1")

Turn Radius

3708 mm (146")

Tread (Rear)

975 mm (38.4")

FUEL CAPACITY

18 L

Tread (Front)

1000 mm (39.4")

Towing Capacity

600 kg (1,322 lb)

Rack Capacity (Rear)

90 kg (198 lb)

Rack Capacity (Front)

50 kg (110 lb)

Maximum Ground Clearance

288 mm (11.3")

features & benefits

ENGINE

Electric starting.
- includes auto decompression system for fast, easy starts
Big Bore Engine Designed for Aggressive Trail Riding
- For the trail rider looking for excitement in every ride with ideal balance of 700-class big bore power and strong midrange that gives immediate response
- The Grizzly EPS brings even more riding excitement without losing an ounce of comfort
- More useable power throughout rev range
High-Performance Ultramatic® Transmission
- Class-leading transmission combine immediate response with advanced features like all-wheel engine braking
- Proven to be the most durable ATV transmission on the market
- Dual range, high - low transmission with reverse
- High mounted belt cooling ducts help prevent water ingestion
Exclusive On-Command® 4WD
- Keeps rider in charge with selectable 2WD, 4WD and 4WD limited-slip and 4WD with diff. lock modes
- Delivers power consistently as required
Class-leading Electric Power Steering
- Provides industry's best balance of steering assist and positive feedback from trail, with light steering, speed-sensitive steering response and minimal fatigue
High-Mounted Air Intake
- Tackle mud and water thanks to the Grizzly EPS's high-mounted air intake layout
- Increases power and torque while providing additional room for on-board storage
- Easy, tool-less servicing of the foam air filter
Stainless Steel Exhaust
- To maintain clean-running performance the Grizzly EPS uses a stainless steel exhaust system
- Features screen-type spark arrestor for greater power with minimum noise output
High-Capacity Radiator
- Slow-speed, technical riding can bring added stress and heat, so the Grizzly EPS has a high-capacity radiator with fan assist
- Delivers plenty of air flow for maximum cooling efficiency
- Positioned high in the frame for optimal protection

Chassis

Rugged round tube steel frame
- Compact design provides nimble, responsive handling
High-Performance Tires
- Maximizing available traction, the Grizzly EPS features 26-inch Maxxis® tires
- Exclusively designed for Yamaha, these new tires provide precise steering feel and feedback
Aggressive and Durable Styling
- Rugged composite front bumper resists scratching and rust
- Injection-molded fenders and CV joint guards protect again rock and debris
Steel "Wide Arc" style front A-arms
- "Wide Arc" design increases ground clearance in the centre of the machine
- 288 mm (11.3 inches) of ground clearance
- Heavy duty plastic A-arm and CV boot guards
Independent Double Wishbone Front and Rear Suspension
- 7.6 inches of front wheel travel / 9.1 inches of rear travel
- Provide excellent rider comfort even on the toughest trails
- Nitrogen-charged shocks with 5-way adjustable preload
Generous Ground Clearance
- To handle any terrain, the Grizzly EPS offers impressive 11.3 inches of maximum ground clearance
- Full-length composite skid plates provide protection against rock and debris damage
Underseat Fuel Tank
- Optimized 4.76 gallon fuel tank is located under the seat for excellent mass centralization and handling
LED Headlights and Taillights
- Uses less power and creates a brighter, sharper illumination
- Offers lifetime durability
- Handlebar-mounted halogen work light provides additional lighting that moves with rider input for excellent visibility
Rugged and roomy floorboards.
- excellent rider foot protection
- helps reduce keep mud and water splash
Four-Wheel Hydraulic Disc Brakes
- Powerful and consistent braking come standard on every Grizzly EPS model thanks to four-wheel hydraulic disc brakes
- Unmatched braking feel
Work-Ready Tow Capacity
- Center-mounted, heavy duty two-inch receiver comes standard on Grizzly
- Capable to tow up to 600 kg (1322 lb)

Design

Plush Seat
- Improves rider comfort for extended days exploring every trail
- Plenty of room for the rider to move during aggressive riding
*Ready for Accessories
- Engineered in concert with a range of accessories for perfect fit and function
- Standard 12V power point to keep devices charged.
